•Introduction:

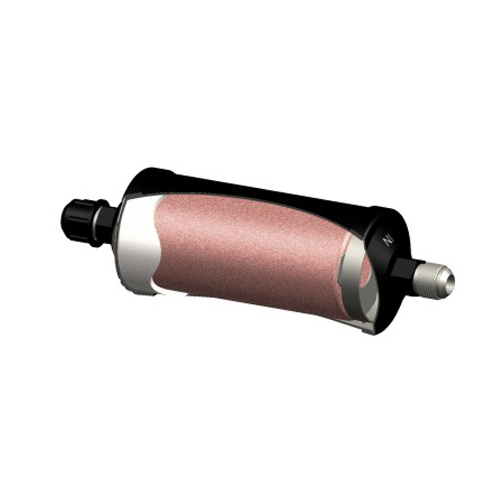

1030/1038 series liquid pipeline filer drier protecting refrigeration and air conditioning system make it does not contain water. ocW and solid impurities-All drying rater core body is a molecutar sieve sintered filter, the core body is 100% of the 1030 series sintering filter, molecular sieve and 1038 series of moJecular sieve from 80%and 20% active aluminum sintering.

Contact Us

Details

•Features:
1.Solid rater is a motecutar sieve portides stick together don’t move, avoid the powdef produced
2.1030 series and 1038 series have copper over braze welding interface and threaded connections are available
3.1030 series hove good drying and filtering abity. 1038 senes with odd absorption ond dry filtering capability
4.Filtration precision ot 25gm. can maintain effective fltefing in the minimum pressure drop
5.Surface coated with corrosion resistonl epoxy powder coating, match the requrement of 500 hours salt spray testing
6.Maximum working pressure of 45 bar
7.Applicable temperature -40℃-+120℃

Medium type

1038 Series

1030 Series

Refrigerant

HFC

usable

Suggested Use

HCFC

Suggested Use

Usable

CFC

Suggested Use

Not applicable

Oil

Mineral oil or AB

Suggested Use

Usable

Pure POE or PAG

Usable

Suggested Use

Additive POE or PAG

Not applicable

Suggested Use

1030 series corresponding to Danfoss DML series, 1038 series corresponding to Danfoss DCL series For CFC system, it is recommended to use 1038 series dry filters, in these systems, may need to use with acid absorption can filter dryer For oil additive in the system, is not recommended to contain active aluminum filter dryer

Model

Connedlons

Pressure Drop △p (12) =0.07bar Fluid Refrigerating Capacity (Kw)

(mm)Dimensions

Type

ODF SAE R134a R22/R410A R407C R404A/507 R502 A B D L

1030/1038-032



1/4

6.7

5.1

4.9

7.5

7.1

22.5

66

43

111

FIGI

I030/I038-032S

1/4



6.7

5.1

4.9

7.5

7.1

16.5

99

FIG2

1030/1038-033



3/8

12.9

9.9

9.6

14.5

13.8

27.5

121

FIG1

1030/1038-033S

3/8



12.9

9.9

9.6

14.5

13.8

19

104

FIG2

1030/1038-052



1/4

7.7

5.6

5.5

8.5

8.0

22.5

75

54

120

FIG3

1030/10380S2S

1/4



7.7

5.6

5.5

8.5

8.0

18.5

112

FIG4

1030/1038-053



3/8

12.9

9.8

9.5

14.5

13.8

27.5

130

FIG3

1030/1038-053S

3/8



12.9

9.8

9.5

14.5

13.8

19

113

FIG4

1030/1038-054



1/2

25.7

20.8

20.2

30.2

28.6

30

135

FIG3

1030/1038-054S

1/2



25.7

20.8

20.2

30.2

28.6

20

115

FIG4

1030/1038-082



1/4

7.7

5.4

5.3

8.2

7.9

22.5

101

54

146

FIG5

1030/I038-082S

1/4



7.7

5.4

S.3

8.2

7.9

18.5

136

FIG6

1030/1038-083



3/8

14.2

11.0

10.7

16.2

15.3

27.5

156

FIG5

1030/1038-083S

3/8



14.2

11.0

10.7

16.2

15.3

19

139

FIG6

1030/1038-084



1/2

28.6

21.4

20.7

31.7

30.2

30

161

FIGS

1030/1038-084S

1/2



28.6

21.4

20.7

31.7

20.2

20

141

FIG6

1030/1038-085



5/8

43.8

35.3

34.3

51.6

48.7

35

171

FIG5

1030/1038 085S

5/8



43.8

35.3

34.3

51.6

48.7

24

149

FIG6

1030/1038-162



1/4

7.7

5.4

5.3

8.2

7.9

22.5

110

76

155

FIG5

1030/1038-162S

1/4



7.7

5.4

5.3

8.2

7.9

18

146

FIG6

1030/1038-163



3/8

16.3

11.2

10.8

16.8

16.2

27.5

165

FIG5

1030/1038-163S

3/8



16.3

11.2

10.8

16.8

16.2

19

148

FIG6

1030/1038-164



1/2

32.2

23.5

22.7

35.1

33.6

30

170

FIG5

1030/1038-164S

1/2



32.2

23.5

22.7

35.1

33.6

20

150

FIG6

1030/1038-165



5/8

44.6

36.6

35.6

53.4

50.2

35



180

FIG5

1030/1038-166



3/4

44.5

37.4

36.4

54.4

51.2

40



190

FIG5

1030/1038-166S

3/4



44.5

37.4

36.4

54.4

51.2

26



162

HG6

1030/1038-167S

7/8



45.9

40.1

39.2

56.6

52.8

28.5



167

FIG6

1030/1038-303



3/8

15.7

10.6

10.2

16.6

15.5

27.5



244

FIG7

I030/1038-303S

3/8



15.7

10.6

10.2

16.6

15.5

19



227

FIGS

1030/1038-304



1/2

32.5

25.0

24.3

36.8

35.1

30



249

FIG7

1030/1038-304S

1/2



32.5

25.0

24.3

36.8

35.1

20



229

FIG8

1030/1038-305



5/8

43.7

36.9

35.9

53.8

50.9

35

189

76

259

FIG7

I030/I038-30SS

5/8



43.7

36.9

35.9

53.8

50.9

24

237

FIG8

1030/1038-306



3/4

45.7

39.8

38.9

55.6

52.5

40



269

FIG7

1030/103a-306S

3/4



45.7

39.8

38.9

55.6

52.5

26



241

FIG8

1030/1038-307S

7/8



64.3

54.0

52.5

77.8

73.3

28.5



246

FIG8

I030/1038-309S

1-1/8



83.6

69.8

67.9

101.6

95.0

29



247

FIG8

1030/1038-413



3/8

18.4

12.4

12.0

19.2

18.2

27.5



246

FIG7

1030/1038-414



1/2

33.4

26.5

25.7

38.6

36.7

30



251

FIG7

1030/1038-4 US

1/2



33.4

26.5

25.7

38.6

36.7

20



231

FIG8

1030/1038-415



5/8

55.4

41.8

40.6

62.1

59.1

35



261

FIG7

1030/1038-415S

5/8



55.4

41.8

40.6

62.1

59.1

24

191

89

239

FIG8

1030/1038-416



3/4

62.4

53.8

52.6

76.6

72.4

40

271

FIG7

1030/1038-416S

3/4



62.4

53.8

52.6

76.6

72.4

26



243

FIG8

1030/1038-417S

7/8



66.7

56.3

54.8

80.2

76.3

28.5



248

FIG8

1030/1038-419S

1-1/8



95.3

76.3

74.1

112.3

105.4

29



249

FIG5

Remark:1.capacity to work status: liquid refrigerant temperature te=30℃. saturated evaporation temperature=-15℃. the pressure drop △p=0.07bar
